    Four Head Pneumatic Wire Welding Machine , Wire Shelf Manual Spot Welding Machine

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-SP-150K
    Certification : CE/CCC/ISO
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

    Four Head Pneumatic Wire Welding Machine , Wire Shelf Manual Spot Welding Machine


    Four Head Pneumatic Wire Welding Machine , Wire Shelf Manual Spot Welding Machine


    DESCRIPTION

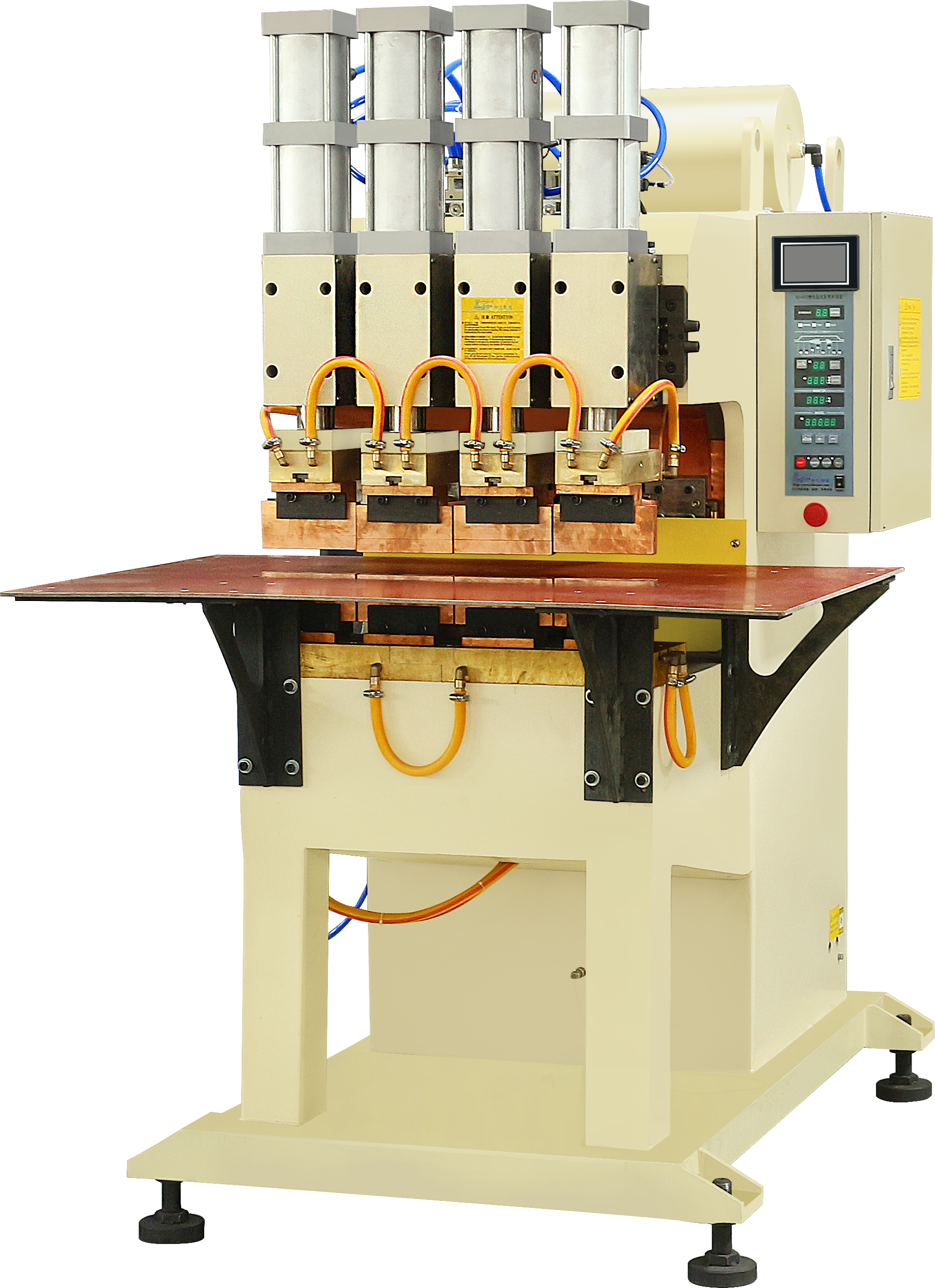

    This spot welding machine adopts 4 welding electrodes. The operator only needs to put the material onto the fixture/jig and press foot pedal, then the machine will conduct welding .


    This machine is suitable for wire mesh within 650x650mm.


    Power Source System: Adopt 1 set of 150KVA special resistance welding transformer as the welding power source. Continuous duty cycle rate is 50%; the output current is larger than 38000A. The executive standard is GB/15578-2008; the magnetic permeability of forced temperature control cooling water silicon steel sheet is larger than 12000GS; special cooling water subloop; It can ensure the output welding current of the whole machine is constant and powerful in order to obtain high quality, high efficiency, stable welding spots.


    Welding Method: It is designed with multipoint welding method. Equipped with four welding electrodes. The upper electrode could move. The lower electrode is designed as a large flat table to ensure large current on welding work piece. Then the stability of welding spots could be guaranteed.


    SPECIFICATION

    No.ItemData
    1Input Voltage380V two-phase
    2Input Current400A
    3Output VoltageAC11.6V
    4Max Short Circuit Current38000A
    5Welding Models16 types
    6Welding Positions5000 point
    7Different Welding Current8 types
    8Welding Effective Width650mm
    9Welding Effective Length650mm
    10Upper Welding Cylinder4(¢100x80mm)
    11Lower Welding Cylinder1(¢125X50mm)

    APPLICATION

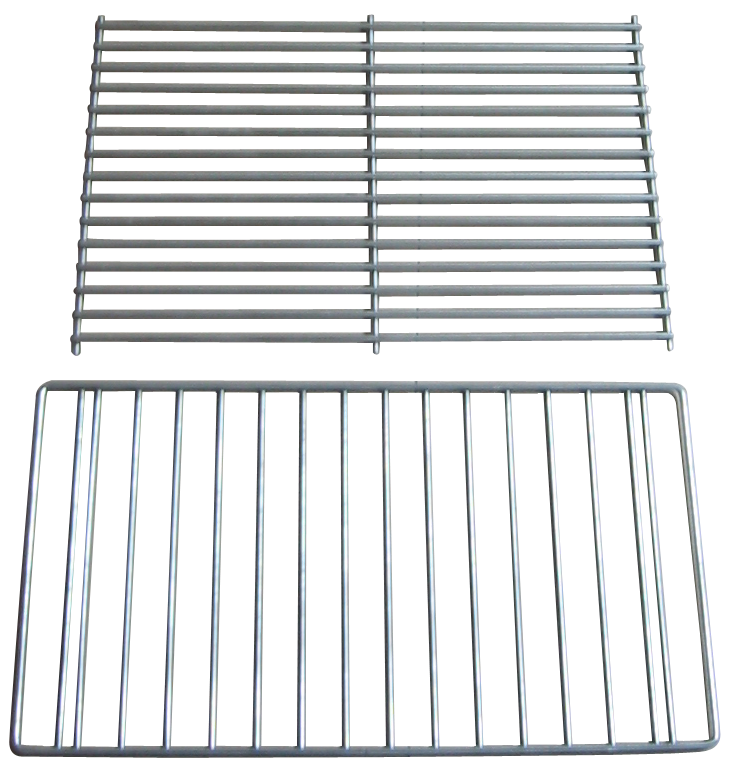

    Continuing welding of row shape and metal wire mesh.


    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
