    Lockset Pneumatic Spot Welding Machine / Lockset Plate Spot Welder

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-S-.100k
    Certification : CE/CCC/ISO
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

    Lockset Pneumatic Spot Welding Machine / Lockset Plate Spot Welder


    Pneumatic Lockset AC Spot Welding Machine Lockset Plate Spot Welder

    SPECIFICATION

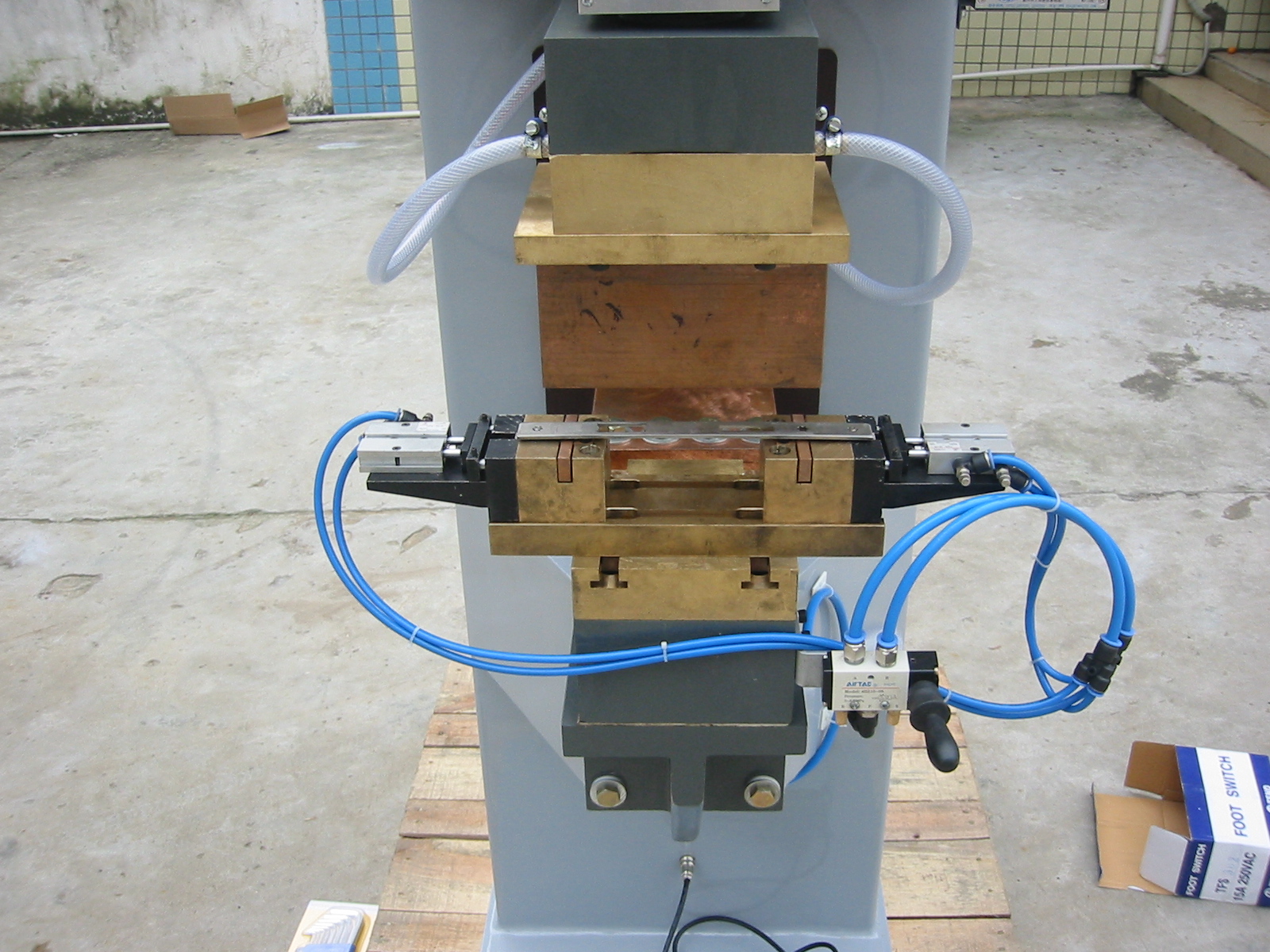

    This machine is customized for row/ spot welding galvanized steel lockset. Machine adopt row welding electrode, which can achieve one time welding one plate with housing part. Please see below detail machine pictures.


    • Multiple times of continuous discharging
    • Be able to finish welding at one time
    • Firm joint
    • No black coating after welding, no oxidation
    • Low cost
    • No need of subsidiary materials
    • Precise mould designed
    • Convenient and simple all-directions adjustment
    • Suitable for welding of multiple types of products.
    ModelVoltagePower

    Secondary

    Current

    Pressurization

    Electrode

    Stroke

    Closure

    Platform

    Distance

    Electrode

    Distance

    Cooling

    Water

    VKVAAKgmmmmmmmmLit/min
    WL-S-50K380/1501950050080---6
    WL-SP-25K380/1251200030080145-225250320-4206
    WL-SP-35K380/1351600035080145-225250320-4206
    WL-SP-50K380/1501950050080145-225250320-4206
    WL-SP-75K380/175240001000100130-230260490-5408
    WL-SP-100K380/1100340001000100130-230260490-5408
    WL-SP-150K380/1150400001000100130-230260490-5408
    WL-SP-200K380/1200500001500100130-230260490-5408
    WL-P-75K380/175240001000100130-230260-8
    WL-P-100K380/1100340001000100130-230260-8
    WL-P-150K380/1150400001000100130-230260-8
    WL-P-300K380/1300750002000100130-230260-8




    FEATURE
    1. Special design interatoin of pressurized cylinder which can stability and mobility of pressurized and welding speed.


    2.Multiple same ways forced water cooling system to ensure stability and reliability of long-term operation.



    3. Silicon Controlled: Adopt the SEMIKRON from West Germany, IXYS or IR Silicon controlled from United States; High precision and durable; Be able to control the high stability of the magnitude of current.


    4. WD-KD5 Controller: intelligent microcoputer ontrol;multiple-section of discharge ;it can be used to preheat.to weld.


    APPLICATION

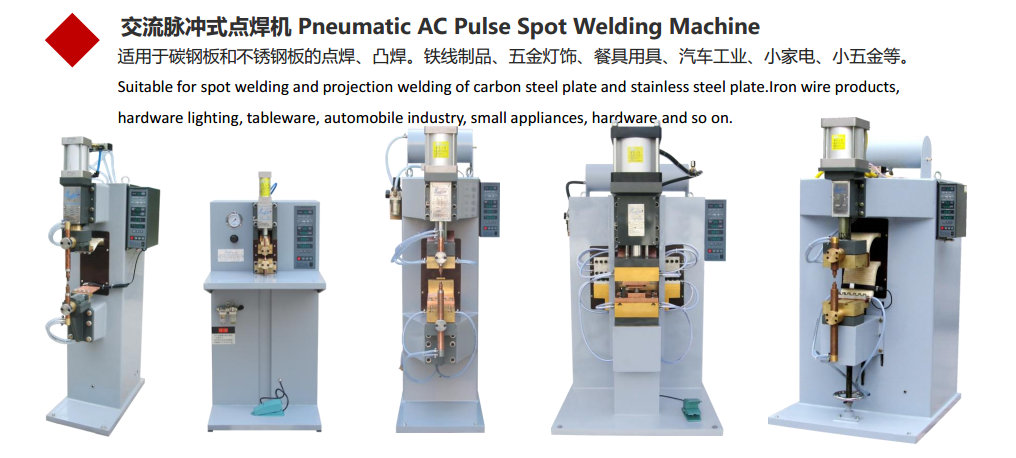

    suitable for spot welding of projection welidng of stud ,screw,steel plate and stainless steel sheet.

    COMPETITIVE ADVANTAGE
    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
    5. Quick Delivery: Our company provides just-in-time delivery.
    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
