    Multiple Heads Wire Welding Machine Resistance Row Series HWASHI WL-SQ-150K

    Ask Lasest Price
    Brand Name : Hwashi
    Model Number : WL-SQ-150K
    Certification : CCC / CE
    Price : US $1,000 - 20,000 / Set
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 days
    • Product Details
    • Company Profile

    Multiple Heads Wire Welding Machine Resistance Row Series HWASHI WL-SQ-150K

    Detailed Description

    Wire mesh row welding machine

    1. Utilizes the features of smooth surface, the same degree of thickness of wire diameter and large area of welding

    and by using the special jig, to achieve highly effective, fast speed, and few deformation of welding.


    2. Except for square and rectangle, it can be used to weld triangle, circle and even other kinds of odd plane net.


    3. Notes: The welding feature of row welding is similar to gantry welding, but they are different in the size of the welding samples. The diameter of the sample of gantry welding is larger than that of row welding.


    Features

    1. Welding Control System: WD-KD5 Intelligent Microcomputer Controller. The AC pulse spot welder that we produce can be matched with many types of welding controllers.


    2. Silicon Controlled: Adopt the SEMIKRON, IXYS Silicon controlled from West Germany or IR Silicon controlled from United States;


    3. Pneumatic Control System: Adopt large displacement of magnetic valve and gas assembly, sufficient air supply; Adopt the quick exhaust cylinder, quick response, good servo performance.


    4. Welding Transformer: Adopt high purity silicon steel disc refined welding transformer; Good permeability and electrical conductivity; Less consumption of electricity; Be able to weld the metal plates like 8mm+8mm low-carbon steel.


    Application Area

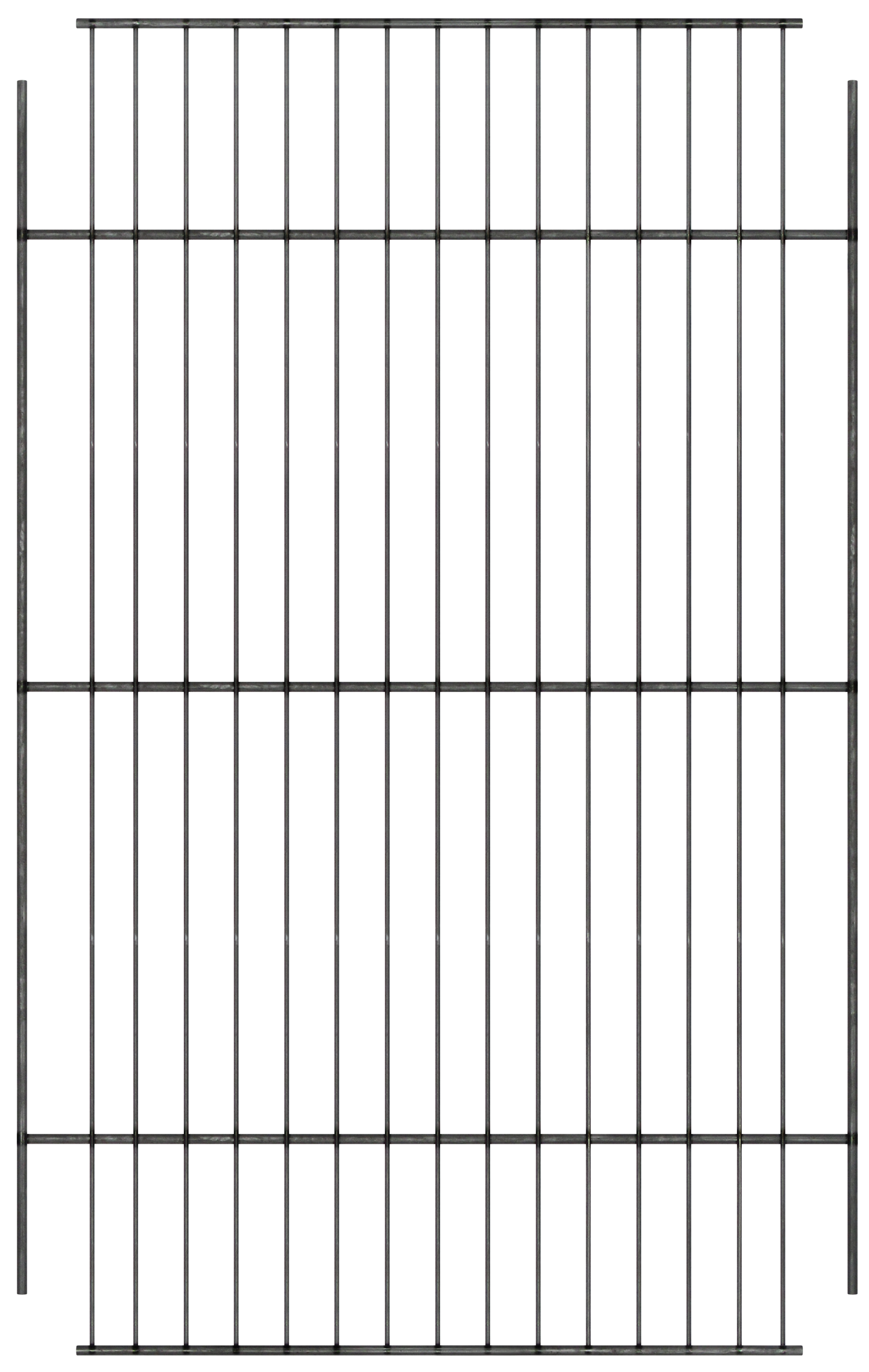

    Continuous welding of row shape and metal wire mesh.



    Technical Parameters

    Wire Mesh Row Welding Machine

    ModelInput VoltageInput PowerInput CurrentRow Welding WidthAdjustable Stroke
    VKVAAmmmm
    WL—75K380752400015050
    WL—100K3801003000020050
    WL—125K3801253500020050
    WL—150K3801504000020050
    WL—200K3802005000020050
    WL—250K3802505600020050

    Material Configuration

    .png


    8 Row Welding Machine


    About Hwashi


    Guangdong Hwashi Technology Inc. was established in 2001. The headquater is located in Hwashi technology industrial area, huiyang, huizhou city. It is a high-tech enterprise speacializing in developing ,manufacturing, and selling resistance welding machine, automatic welding machine and industrial robot.

    Hwashi has more than 20 technicians who are experts in R&D work of electrical engineering, mechanical engineering, welding technology, quality inspection,ect. So that Hwashi has the comprehensive R&dD capability of developing new product, engineering design and mold design, product inspection and test, on-site technical support,ect.
