    Iron And Stainless Steel Arc Welder Automatic Seam Welding Facility

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-YZ-1500
    Certification : CE/CCC/ISO
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

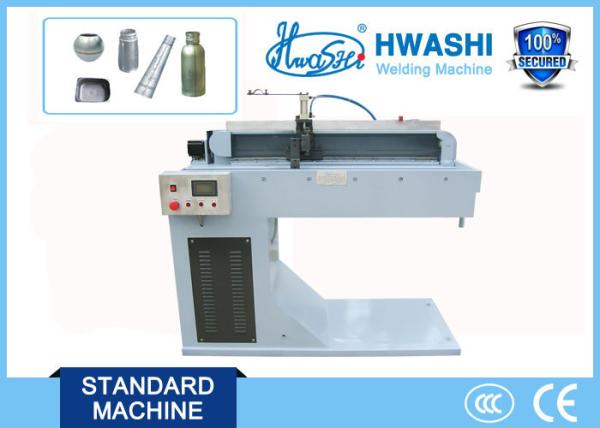

    Iron And Stainless Steel Arc Welder Automatic Seam Welding Facility

    Iron And Stainless Steel Product. Argon Welder , Automatic Motorcycle Damper


    SPECIFICATION

    No.

    Item

    Data

    1

    Input Voltage

    380V three-phase

    2

    Input current

    15Ax3

    3

    Min welding thickness

    0.2mm

    4

    Max welding thickness

    3mm

    5

    Work piece max welding length

    1500mm

    6

    Work piece max diameter

    1000mm

    7

    Work piece min diameter

    300mm

    9

    Welding gun moving speed

    0.5m/sec


    DESCRIPTION


    Automatic straight seam welding machine taking argon arc welding machine as the welding power source. The stepping motor drives the welding gun to conduct constant speed movement. The moving speed and length is set through PLC; use pneumatic pressing plate to press to ensure the stability and consistency of welding; the action program of the whole machine is controlled by PLC; use the touch screen to input data.

    Maximum work piece length: 300/500/1000/1500/2000mm

    Welding thickness: 0.3-8.0mm

    Welding speed: 30-800mm/min


    APPLICATION

    Applied to welding of iron and stainless steel product.


    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3.When your requirements demand a Multiple-head or Dedicated Resistance welder, call HWASHI. Our many years of experience in developing and producing cost effective, specialized Resistance welders for internationally recognized and new emerging companies, allows us to help you to achieve increased productivity and reduced welding costs within an affordable budget.
