    Heating pressure Electrical Welding Machine

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-HT-MF300K
    Certification : CE/CCC/ISO
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

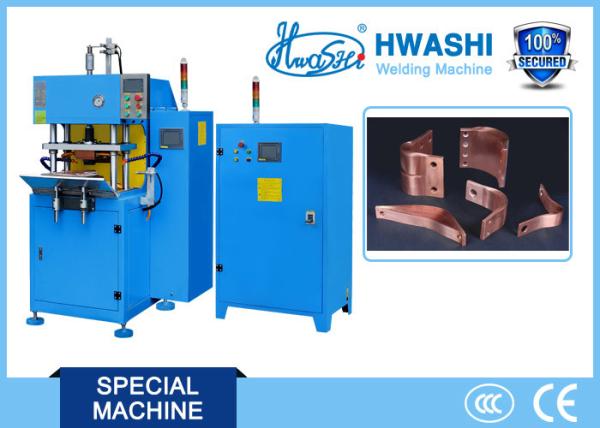

    Heating pressure Electrical Welding Machine


    Heating pressure macromolecule diffusion Electrical Welding Machine For Flexible Busbar


    DESCRIPTION

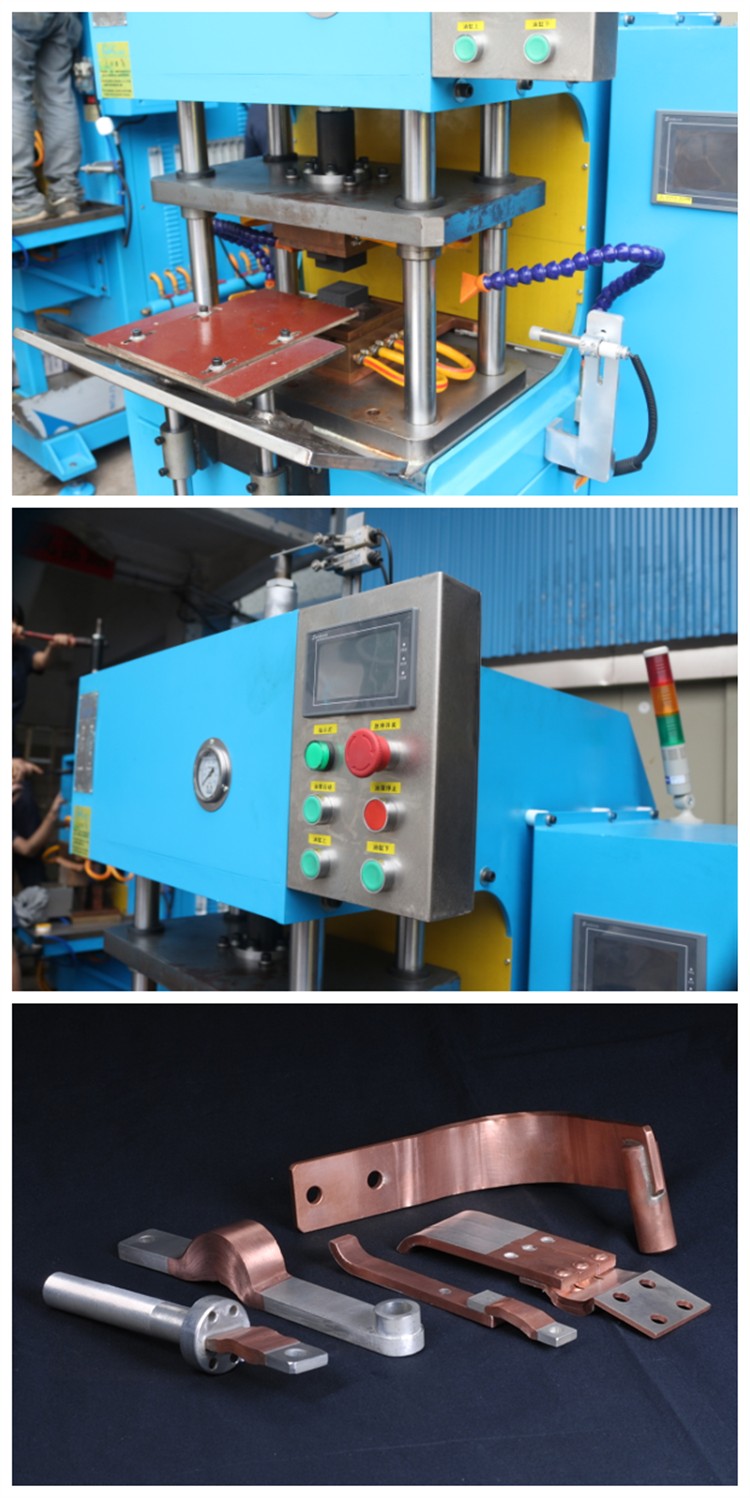

    The utility model relates to an electric heating pressure macromolecule diffusion welding machine. The electric heating pressure macromolecule diffusion welding machine comprises a hydraulic mechanism, an electric heating pressure mechanism and an electronic control system. The hydraulic mechanism comprises a hydraulic tank, and an oil tank, an oil pump and a hydraulic cylinder are arranged inside the hydraulic tank. The electric heating pressure mechanism comprises a support. The support comprises an upper fixing plate and a lower fixing plate. Parallel stand columns are vertically and fixedly arranged between the upper fixing plate and the lower fixing plate and are provided with movable plates in a sliding mode, the lower side of the upper fixing plate and the upper side of the movable plate are sequentially and respectively provided with an insulating plate, a lower cushion block, a heating copper plate, an upper cushion block and a pressing head, and cooling systems are arranged on the heating copper plates. The electronic control system comprises an electronic control cabinet which is provided with a control panel and a display panel. The electric heating pressure macromolecule diffusion welding machine has the advantages of being reasonable in design, reliable in connection, convenient to machine, easy to operate, safe, reliable, long in service life and the like, and is widely applied to the welding field of various workpieces.


    Medium frequency inverter DC resistance control system: Refer to the following picture, the three-phase AC current has been rectified into DC. Then convert into medium frequency 1000Hz square wave and connected into primary of welding transformer through inverter circuit which is composed of IGBT. After the rectification through welding transformer, the current become DC with small pulsation and being supplied to electrode for welding. The inverter will adjust the duty cycle rate of IGBT according to the feedback of primary and secondary welding current so as to achieve constant current during welding process.


    TECHNICAL PARAMETERS


    Model No.WL-MF-90KWL-MF-150KWL-MF-200K

    WL-MF-300K

    Input power supply3~380V3~380V3~380V3~380V
    Rated capacity90KVA150KVA200KVA300KVA
    Max shot-circuit current18KA30KA45KA55KA
    Duty cycle20%20%20%20%
    Control method

    Primary/subprime

    constant current

    Primary/subprime

    constant current

    Primary/subprime

    constant current

    Primary/subprime

    constant current

    Inverter frequency1kHz1kHz1kHz1kHz
    Arm length220*400mm220*400mm220*450mm220*450mm
    Max pressure6KN10KN15KN20KN
    Electrode stroke60mm80mm80mm80mm
    Cooling water≥8L/min12L/min12L/min14L/min
    Welding thickness3.0+3.0mm3.5+3.5mm4.0+4.0mm4.5+4.5mm



    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
