    HWASHI WL-FST-150K Motorcycle Shock Absorber Seam Welding Machine

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-FST-150K
    Certification : CE/CCC/ISO
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

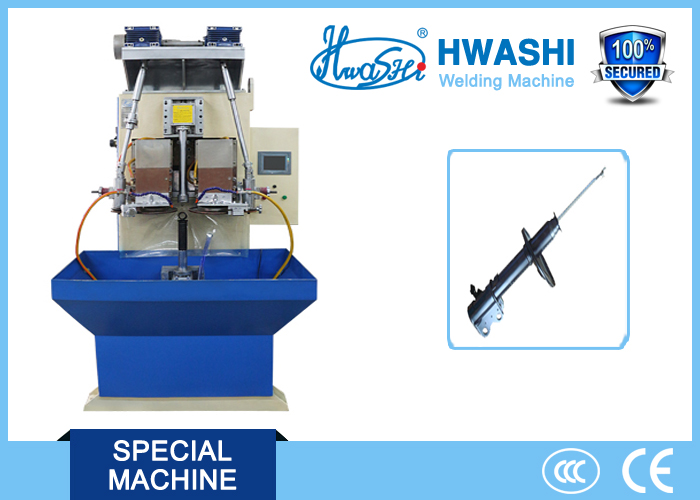

    HWASHI WL-FST-150K Motorcycle Shock Absorber Seam Welding Machine


    HWASHI WL-FST-150K Motorcycle Shock Absorber Seam Welding Machine


    DESCRIPTION

    The special machine is used to weld the motorcycle shock absorber, damper, bumper by seam welding.


    It adopts the roller electrode to replace the cylindrical electrode of spot welding and as the welding work piece moves between the rolling plates, the seal welding will generate weld nuggets which will overlap with each other so as to achieve welding effect. Medium frequency power supply system is adopted in this machine for the sake of obtaining good welding quality.


    FEATURE


    1. This machine is of reasonable design, beautiful appearance, stable welding performance.

    2. It adopts intelligent micro-computer controller which can set different kinds of welding specification. Multi-segment electrification method has the functions of soft start welding and ending welding.It adopts subprime constant current feedback control mode which will do auto compensation when the voltage is unsteady in order to ensure the stable welding current.

    3. It adopts high power welding transformer with all-round water cooling, which can complete different kinds of product’s welding efficiently to guarantee welding quality.

    4. This welding machine is widely applied to various kinds of stainless steel products and it can achieve multifunction usage.

    SPECIFICATION


    ModelWL-FST-150K
    Input Voltage380V±10% 50Hz
    Rated Capacity150KVA
    Rated Duty Cycle Rate25%
    Max Secondary Floating Voltage9.5VAC
    Max Secondary Short Circuit Current38000A
    Welding Transformer Insulation GradeGrade F

    Controller Program Segment

    Prepressing, Preheating, Cooling, Welding (Forge And Press), Cooling, Tempering, Maintaining, Stop; The Heat Of Preheating, Welding And Tempering Could Be Adjustable Respectively.
    Program Segment Time Adjustment Range0~99 Cycle, No Error

    Controller Heat Adjustment Range


    15%~99%
    Compensation For Power Grid Voltage FluctuationWhen the value of power grid voltage fluctuates within the range of ±10 %, the secondary voltage fluctuates within the range of ≤±3 %
    Electrode Pressure9kN(I),1.8kN(II)
    Gas Consumption5m3/h
    Cooling Water Consumption200L/H
    Welding Wheel Diameter200-250mm
    Welding Wheel Width5mm
    Welding Wheel Rotate Speed800-4000mm/min (adjustable)
    Welding Wheel Throat Depth Distance300mm
    Left and Right Welding Wheel Distance30-50 mm( adjustable)
    Rated Bleed Pressure0.6MPa
    Air Consumption15m3/h
    Water Source Pressure0.2Mpa
    Water Temperature10-20℃
    Cooling Water Consumption1000L/H

    APPLICATION

    This machine is widely applied to welding motorcycle shock absorber, damper and bumper, etc.


    MATERIAL CONFIGURATION


    S.N

    Name

    Specification

    Brand

    Orgin

    1

    Discharge controlled

    silicon

    MCC

    MCC

    U.S.A

    2

    Controller

    CT

    KD4-1

    Self-design

    3

    Integrated chip

    C-CMOS

    MOTOROLA

    U.S.A

    4

    Switch

    DS-231

    IDEC

    Japan

    5

    Magnetic Valve

    4000#

    SANWO

    Korea

    6

    Air group

    4000#

    SANWO

    Korea

    7

    Frequency converter

    Fklt

    TAIDA

    Taiwan

    8

    Main control cylinder

    ¢100x80

    ZC

    ZC


    COMPETITIVE ADVANTAGE


    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.


    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.


    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.


    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.


    5. Quick Delivery: Our company provides just-in-time delivery.


    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
