    Advanced DC Welding Machine / Medium Frequency Welding Studs Into Steel Plate

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-MF-35K
    Certification : CE/CCC/ISO
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

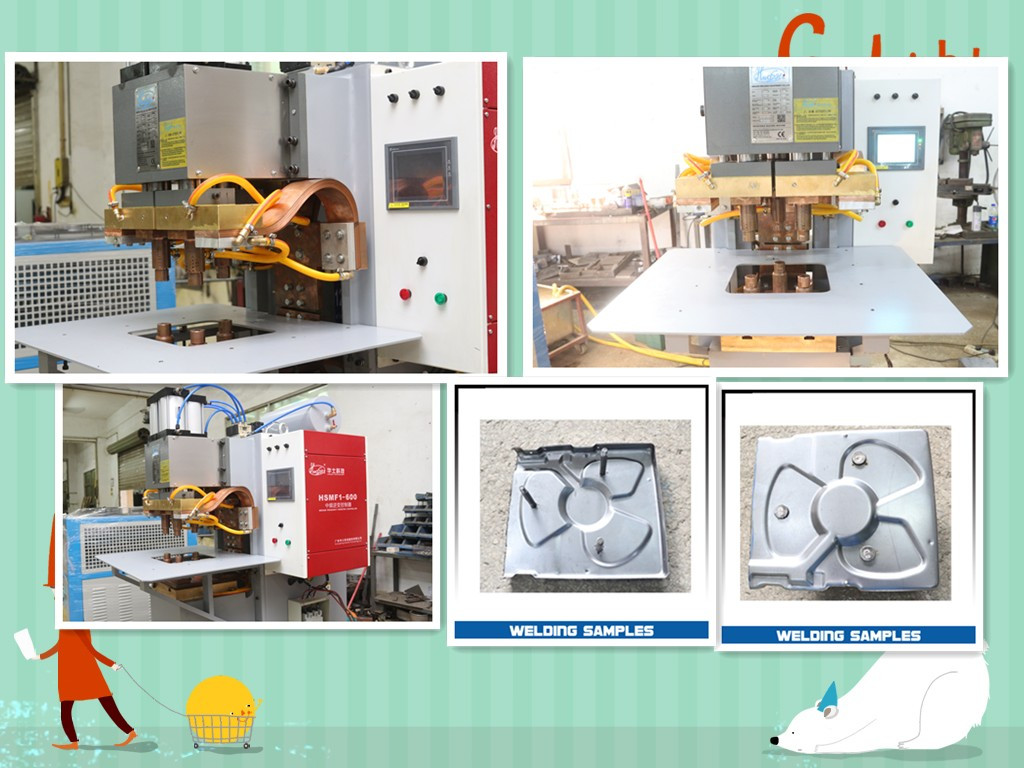

    Advanced DC Welding Machine / Medium Frequency Welding Studs Into Steel Plate

    Advanced DC Welding Machine / Medium Frequency Welding Studs Into Steel Plate


    DESCRIPTION


    This machine are mainly use to welding studs/bolts into iron or steel plate . It adopts medium frequency dc welding power source. MF DC Inverter Spot Welder is a set of advanced welding equipment. The welding transformer is in small size but the outout energy is large. Three-phase AC will be converted into DC after being rectified. Then the DC will be converted into medium frequency 1000HZ square wave to be connected to primary welding transformer through the inverter circuit which is composed of IGBT. The MF square wave will become small pulse DC to the electrode for welding work piece through the depressurization and recitifying process in the welding transformer. The Inverter will adjust the duty ratio of IGBT through the feedback of secondary current so as to achieve constant current of the welding process.


    Welding current


    SPECIFICATION


    Items

    Specification

    Display

    5 Inches Blue Display Screen

    Rated Power

    80KVA

    Input Voltage

    AC 380V, 50Hz

    Duty Cycle Rate

    25%

    Maximum Short Circuit Current

    25000A

    Inverter Frequency

    1000Hz

    Welding Cycle Period

    11

    Welding Pulse Times

    3

    Current Slow Rise And Down Control

    Yes

    Stored Welding Models

    18

    Throat Depth

    300mm

    Cylinder Size

    ¢100x100mm


    APPLICATION


    Mianly used to welding studs with steel plates.


    FEATURE


    1. The current in secondary weldin gloop is DC. Dramatically reduce the impact to the welding current due to the inductive reactance in secondary lopp when welding to the work piece.


    2.Reduce power consumination, energy saving . Reduce the requirement of cables and lots of maintance cost.


    3. Improve the power factor, reduce the production cost.


    4. Reduce interference in secondary circuit which is in the large open area: the welding current is direct current. When there is induction or magnetic material in secondary winding, the welding will not be affected.


    5. To make the power supply unit load balance: MF inverter projection welder adopts the three-phase sources which can store energy.


    COMPETITIVE ADVANTAGE


    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
