    Hwashi Stud Welding Machine , Automobile Gasholder End Cover Nut Projection Welding Machine

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-C-40K
    Certification : CE/CCC/ISO
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

    Hwashi Stud Welding Machine , Automobile Gasholder End Cover Nut Projection Welding Machine

    Hwashi Stud Welding Machine , Automobile Gasholder End Cover Nut Projection Welding Machine


    DESCRIPTION

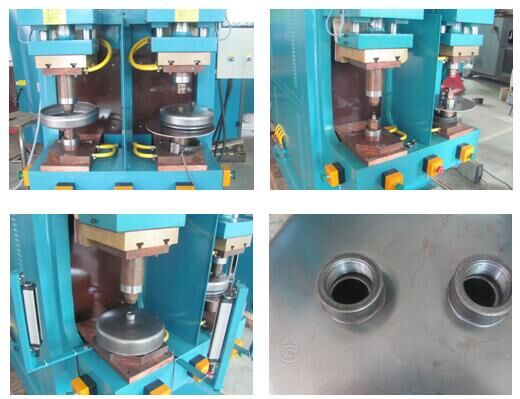

    This automatic welding machine is specially designed to nut to the cover of water heater tank. No discoloration and mark on the welding position and no leakage on the seal of nut and cover.


    Capacitor discharge spot welder uses capacitor to store energy and to release instantaneous current. In the meantime, it concentrates large current to pass through a small point and then achieves welding effect .Therefore, it can minimize the situation that the work piece being oxidized or mechanically deformed due to overheat during the process of welding.



    SPECIFICATION

    Model

    WL-C-40K

    Voltage

    380 V

    Power

    40KVA

    Energy Storage

    25000J

    Capacitance

    250000uF

    Pressurization

    2000kg

    Electrode Stroke

    100 mm

    Closure

    130-230mm

    Platform Distance

    260mm

    Electrode Distance

    490-540mm

    Cooling Water

    15 Lit/min


    FEATURE


    1. Wide Application: Be able to weld 8mm of nonferrous metals like stainless steel, aluminum, titanium, silver, etc. Overcome the difficulties in welding dissimilar metals like bronze, aluminum, etc.


    2. Firm and Good Looking: Firm welding; No black coating on the welding spots so no polishing process is needed; especially suitable for welding those exporting products which have high requirement on good looking.


    3. Electricity and Energy Saving: This machine gets low surge power from the power grid and the power factor is high. Compared with the common AC machine with the same capability, it uses only 1/7 to 1/10 of the power. With a low cost.


    APPLICATION

    Be able to applied to industries like kitchen utensils, automobile manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc.


    MATERIAL CONFIGURATION


    1. Adopt the energy storage type quick charge-discharge capacitor from Japan Nippon Chemi-Con (NCC) which is originated from MARGON or HITACHI; Fast discharge rate. Stable performance.


    2. Adopt SEMIKON from West Germany, IXYS or IR Silicon controlled from United States. High precision and durable. Be able to achieve high stable control on the magnitude of current.


    3. Adopt Motorola integrated circuits from United States. Quick response. Stable performance.


    4. Adopt pneumatic parts from Japan or Taiwan with reliable performance.


    5. All the devices are from imported famous brands with ideal service life and performance.


    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.


    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.


    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.


    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.


    5. Quick Delivery: Our company provides just-in-time delivery.


    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
