Tomato Bracket / Rack Wire Welding Machine , Tomato Support Cage Wire Welders

    Buy cheap Tomato Bracket / Rack Wire Welding Machine , Tomato Support Cage Wire Welders from wholesalers

    Buy cheap Tomato Bracket / Rack Wire Welding Machine , Tomato Support Cage Wire Welders from wholesalers
    • Buy cheap Tomato Bracket / Rack Wire Welding Machine , Tomato Support Cage Wire Welders from wholesalers
    • Buy cheap Tomato Bracket / Rack Wire Welding Machine , Tomato Support Cage Wire Welders from wholesalers

    Tomato Bracket / Rack Wire Welding Machine , Tomato Support Cage Wire Welders

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-SP-100K
    Certification : CE/CCC/ISO
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

    Tomato Bracket / Rack Wire Welding Machine , Tomato Support Cage Wire Welders

    Tomato Support Cage / Tomato Bracket / Tomato Rack Wire Mesh Welding Machine


    COMPETITIVE ADVANTAGE


    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.


    1. Specifications:


    ModelWL-50KWL-63WL-75WL-100WL-125WL-150WL-200
    Power Supply (V)/Frequency380V/50HZ
    Rate Capacity(KVA)506375100125150200
    Rated Input Current(A)132166197263332394526
    Rated Duty Cycle(%)40405050505050
    can weld thickness(plate+plate)(mm)3+33.5+3.54+44.5+4.55+55.5+5.56+6
    can weld diameter(wire+wire)(mm)10+1011+1112+1214+1415+1516+1618+18
    Upper Electrodes Max Stroke(mm)80-100
    Gas Operating Pressure(Mpa)0.50.50.550.550.550.550.6
    Cooling Water(L/minute)620620700720750750800
    Electrodes Max Pressure(KN)4.85.266.391112
    Weight(kg)280300350380400430460

    2. Introduction:

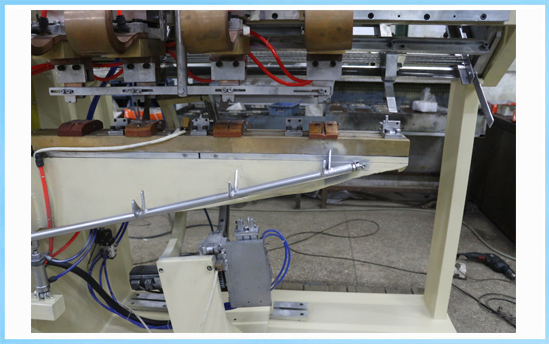

    1)Tomato Wire Support Cage / Tomato Bracket / Tomato Rack Welding Machine uses block type of electrodes, use electricity and pressure, the contact resistance between work pieces produces heat to melt the metals to realize welding. It has automatic wire filling system . Which filling the wire, the machine can weld automatically.

    2) No need any solder.

    3) High efficiency.

    4) Cost efficient.


    3. Our advantages:


    1)Controller Transformer: epoxy resin casting, core part uses copper, inner strong water cooling, can work continuously with reliable welding quality, long life service.

    2)Use reliable qualit pneumatic parts to guarantee stable pressure and welding quality.

    3)Advanced minicomputer controller, one machine can weld different specifications of wires meshes, can do spot welding, row welding and projection welding based on needs.


    4. Application:

    Welding of Tomato Support Cage / Tomato Bracket / Tomato Rack
