    WL-SQ-MF130K Electrical Welding Machine , Office Printer Steel Box Welding Machine

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-SQ-MF130K
    Certification : CE/CCC/ISO
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

    WL-SQ-MF130K Electrical Welding Machine , Office Printer Steel Box Welding Machine

    WL-SQ-MF130K Electrical Welding Machine ,WL-SQ-MF130K Electrical Welding Machine , Office Printer Steel Box Welding Machine


    DESCRIPTION

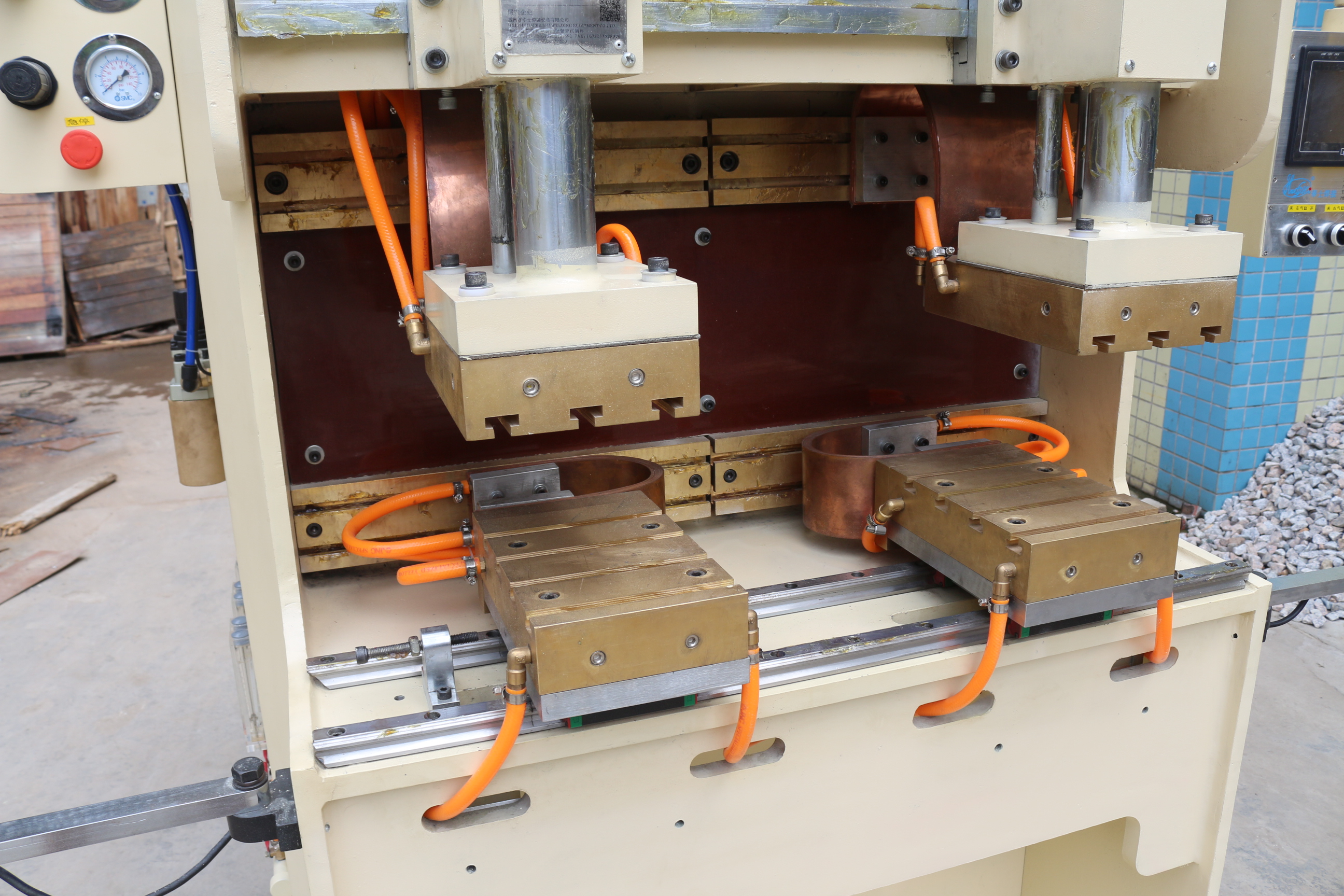

    This machine uses MF DC welding method. The lower electrode is a flat locating mould. According to the position of welding spots, the work piece will be moved on the CNC working table. There are two sets of working tables with welding moulds for each side. When one of the working table enters into welding process, the other set is for the worker to prepare and load the material. Adopt medium frequency welding power source, the welding spot will be good at looking and working efficiency is high.


    SPECIFICATION


    No.

    Item

    Parameters

    1

    Input Voltage

    380V three-phase

    2

    Power

    50KVA

    3

    Welding Power Supply System

    Medium frequency inverter

    4

    Putput Voltage

    DC5.5V

    5

    Max Welding Current

    15000A

    6

    Max Storage Welding Models

    30 types

    7

    Max Welding Positions

    500

    8

    Table Size

    200mmx300mm

    9

    X Axis Effective Distance

    300mm

    10

    Y Axis Effective Distance

    400mm

    11

    X Axis Moving Servo Motor

    One set

    12

    Y Axis Moving Servo Motor

    Two sets

    13

    Moving Speed

    800mm/sec

    14

    Servo Motor Power

    450W

    15

    Welding Cylinder

    2 pcs(60x50mm)

    16

    Upper Electrode

    Two groups

    17

    Lower Electrode

    Large Flat Table


    APPLICATION


    Suit for welding printer parts.


    MATERIAL CONFIGURATION

    1. Adopt silicon controlled from IXYS of United Stated with high precision and long service life.
    2. Adopt integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance.
    3. Adopt Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system. Clear interface, easy operation, and stable performance.
    4. Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within ±15%. Prompt current compensation to ensure the stable welding current of power source.
    5. Adopt Taiwan TECO servo motor with powerful strength, high precision and stable control.
    6. Adopt South Korea SANWO pneumatic components with stable performance.
    7. The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity. Less power consumption, more powerful and stable capacity.
    8. Strictly comply with CE security standard to design the machine. Lower the accident rate.

    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
