    Resistance Seam Welding Machine DC Type Oil Heater Seam Welder

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-CFS -100K
    Certification : CE/CCC\ISO
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

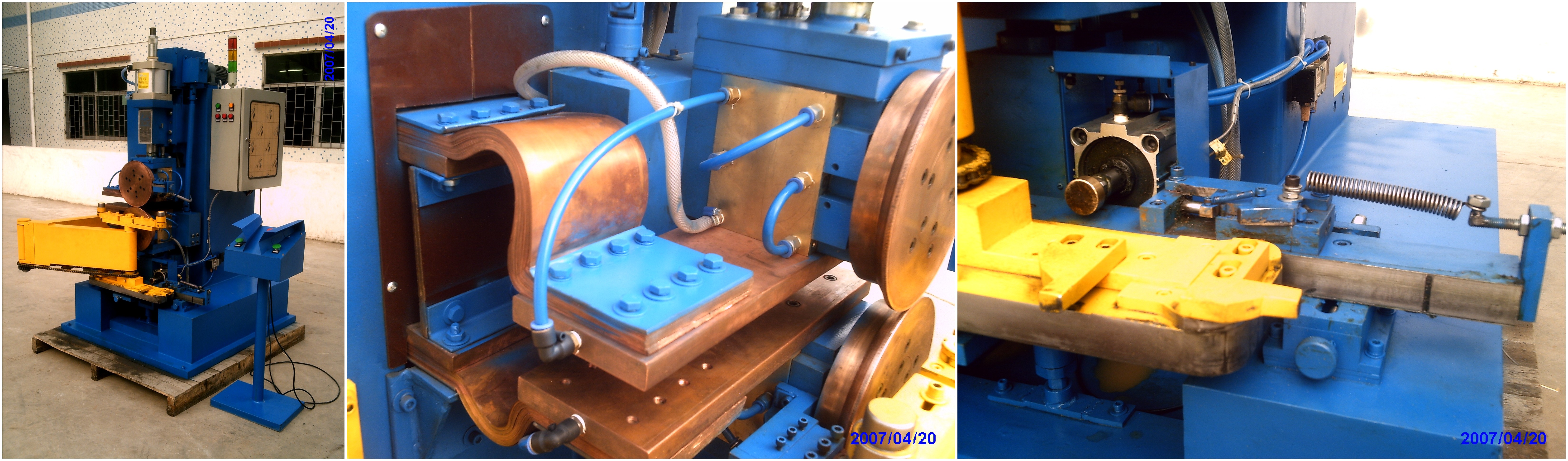

    Resistance Seam Welding Machine DC Type Oil Heater Seam Welder

    Resistance Seam Welding Machine DC Type Oil Heater Seam Welder


    DESCRIPTION
    This machine is specially customized for welding Oil Heater Panel. It adopts seam welding . We will specially design the welding fixture according to your CAD drawing of samples.

    SPECIFICATION


    Model

    Welding Wheel Manner

    Input Voltage

    Output Power

    Output Current

    WL-FST-50K

    Special Machine structure

    380V

    50 KW

    19500 A

    WL-FST-150K

    Special Machine structure

    380V

    150 KW

    40000 A

    WL-FST-200K

    Special Machine structure

    380V

    200 KW

    50000 A

    WL-FS-100K

    Vertical

    380V

    100 KW

    30000 A


    FEATURE


    1. Adopt intelligent microcomputer single piece controller which achieve pure digital setting. Online computer programming, LED digital display, stable performance, convenient modification of the program online.


    2. Adopt digital circuit control; select the components from famous factories in the world to ensure the equipment could operate steadily in the long run.


    3. Adopt intelligent microcomputer control welding system. When the voltage fluctuates, it will compensate the welding current automatically to ensure the stability of welding.


    4. Adopt SEMIKRON from West Germany, IXYS and IR silicon controlled from United States. High precision, long operating life, achieve high stability control of the magnitude of current.


    5. The transmission tile axis adopts the latest mercury conductive technology from abroad. State-of –the-art technology with good performance in transmission and conductivity.


    6. Welding roll wheel adopts the alloy copper material from Japan. High rigidity, good conductivity.


    7. The transformer adopts the high pure silicon steel sheet from Japan, good performance in magnet and electricity conductivity. Low consumption of electricity. Stronger and more stable power.


    8. Welding mold and the connection of the whole machine uses the mosaic connection. Easy to be assembled and disassembled.


    9. AC pulse, secondary rectifying and MF DC type of welding power source are available.


    APPLICATION

    Roll welding is widely applied to light gauge welding of sealed container of oil drum, can, heating radiator, airplane and fuel tank, rocket and missile. In general, the welding thickness is within 3mm of single plate.


    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.







    Quality Resistance Seam Welding Machine DC Type Oil Heater Seam Welder for sale
