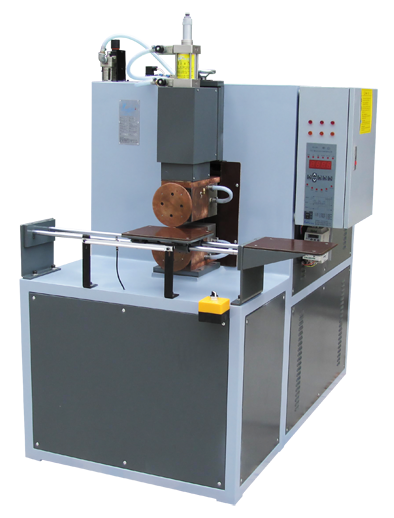

    Resistance Seam Welding Machine Nickle / Steel Belt , Seam Welder

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-FSZ-50K
    Certification : CE/CCC\ISO
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

    Resistance Seam Welding Machine Nickle / Steel Belt , Seam Welder

    Lower Voltage Seam Welding Machine For Steel Belt , Seam Welder


    SPECIFICATION

    No.

    Item

    Parameters

    1

    Input Voltage

    380V three-phase

    2

    Power

    50KVA

    3

    Welding Power Supply System

    Medium frequency inverter

    4

    Preaction speed

    1/2fequency (1/100sec=power 50Hz)

    5

    Max Welding Current

    15000A

    6

    Max Storage Welding Models

    30 types

    7

    Max Welding Positions

    500

    8

    Table Size

    200mmx300mm

    9

    Moving Speed

    800mm/sec

    10

    Servo Motor Power

    450W

    11

    Welding Cylinder

    2 pcs(60x50mm)

    12

    Upper Electrode

    Two groups

    13

    Lower Electrode

    Large Flat Table


    Material configuration

    1) Using SEMIKON, IXYS or SCR control. High precision and long life .

    2) Pneumatic parts with Taiwan and Japan reliable performance.

    3) Motorla integrated circuits used by USA.fast reaction. stable performance.

    4) The electric devices are Japan's Mitsubish or Omron components. service life and performance are very good.

    5) steel sheet with Japanese high-purity refined welding transformer.a good magnetic conductivity performance.low power consumption. Strength is more stronger and stable.


    APPLICATION

    Major supplied in seam welding of automobile shock absorber, thermostat probe, battery nickel belt, oil radiator heaters, power capacitor, etc.


    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality: 1year warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.


    Lower Voltage Seam Welding Machine For Steel Belt , Seam Welder
