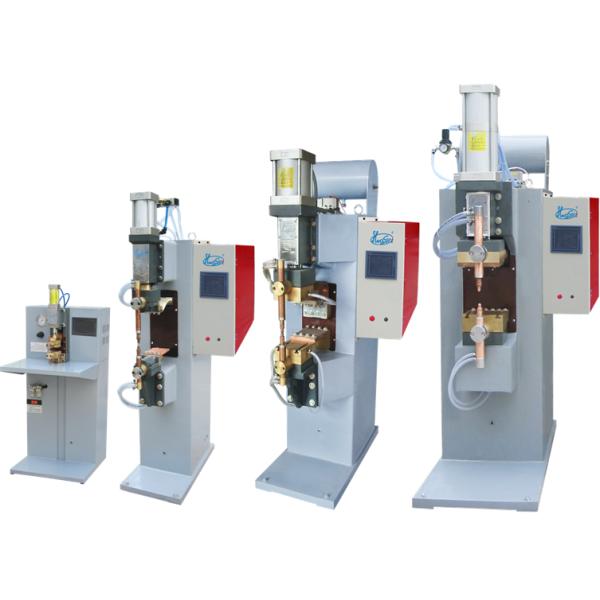

    50KVA~300KVA Intermediate Frequency DC Spot Welder

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-MF-90K
    Certification : CE/CCC/ISO
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

    50KVA~300KVA Intermediate Frequency DC Spot Welder

    50KVA~300KVA Intermediate Frequency DC Spot Welder


    DESCRIPTION

    Medium frequency inverter DC resistance control system: Refer to the following picture, the three-phase AC current has been rectified into DC. Then convert into medium frequency 1000Hz square wave and connected into primary of welding transformer through inverter circuit which is composed of IGBT. After the rectification through welding transformer, the current become DC with small pulsation and being supplied to electrode for welding. The inverter will adjust the duty cycle rate of IGBT according to the feedback of primary and secondary welding current so as to achieve constant current during welding process.



    Compared with the normal AC controller, MF controller has the following advantages:


    1. The current in secondary welding loop is DC. Dramatically reduce the impact to the welding current due to the inductive reactance in secondary loop when conducting welding to the work piece.


    2. The weight of transformer is reduced greatly. It is light and convenient. The weight and size of the MF transformer is only 1/3 of the AC type transformer. Suitable for robot welding system.


    3. Prolong the service life of electrode


    4. Be able to weld material like aluminum, galvanized steel, etc. with good welding performance.


    5. Especially suitable for three-layer plate welding, ultrathin material welding and precision welding.


    6. Less splashes.


    7. Increase control of current and welding quality.


    Touch Screen

    Central part of operation for input data, monitoring and storage

    Solenoid Valve Switch

    Manual switch on or off

    Emergency Stop Button

    When start, it will end the entire running program.

    Note: after pressing this button, you need to power on the machine again.

    Reset Button

    After stopping the program, press this button to reset.


    Medium Frequency Welding System Composition


    Welding Controller, transformer, and welding work piece.

    Welding controller includes the controlled rectifier, energy storage part, IGBT, power driving and central control part.


    SPECIFICATION


    Items

    Specification

    Display

    5 Inches Blue Display Screen

    Rated Power

    90KVA

    Input Voltage

    AC 380V, 50Hz

    Duty Cycle Rate

    20%

    Maximum Short Circuit Current

    21000A

    Inverter Frequency

    1000Hz

    Welding Cycle Period

    11

    Welding Pulse Times

    3

    Current Slow Rise And Down Control

    Yes

    Stored Welding Models

    101

    Throat Depth

    300mm

    Cylinder Size

    ¢100x100mm


    APPLICATION

    Sensor, LED and its lead, copper foil and vanished wire, relay, watch, capacitive slug and lead, copper wire, resistance pin, inductance, battery and stabilizer link, socket, silver contact and copper sheet, welding lightning with tungsten and molybdenum material, etc.


    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
