    Steel Belt Seam Welding Machine Lower Voltage Nickle Belt Seam Welder

    Steel Belt Seam Welding Machine , Lower Voltage Nickle Belt Seam Welder


    DESCRIPTION

    Seam (rolling) welding machine is an envolving of spot welding machine. It uses circular wheels to replace the spot welding electrode to conduct rolling and continuous welding with continuous general current pulse, formed by a series of weld seam welding joint composition. when the dot distance is large. the welding form is similar to welding discontinous. called rolling dot welding. it can improve the production effiency. when the dot distance is small. the melt nuclear folder overlapping 1/3 of melt nuclear diameter to get a certain intensity air-tightness weld.


    SPECIFICATION

    No.

    Item

    Parameters

    1

    Input Voltage

    380V three-phase

    2

    Power

    75KVA

    3

    Welding Power Supply System

    Medium frequency inverter

    4

    Preaction speed

    1/2fequency (1/100sec=power 50Hz)

    5

    Max Welding Current

    15000A

    6

    Max Storage Welding Models

    30 types

    7

    Max Welding Positions

    500

    8

    Table Size

    200mmx300mm

    9

    Moving Speed

    800mm/sec

    10

    Servo Motor Power

    450W

    11

    Welding Cylinder

    2 pcs(60x50mm)

    12

    Upper Electrode

    Two groups

    13

    Lower Electrode

    Large Flat Table


    APPLICATION

    major supplied in automobile shock absorber. thermostat probe. battery nickel belt. oil radiator heaters. Power capacitor. Mesh frying basket industry. pump industry. canning industry. barrel industry and so on.


    Material configuration

    1) Use SEMIKON, IXYS or SCR control. High precision and long service life .

    2) Pneumatic parts with Taiwan and Japan reliable performance.

    3) Motorla integrated circuits used by USA.fast reaction. stable performance.

    4) The electric devices are Japan's Mitsubish or Omron components. service life and performance are very good.

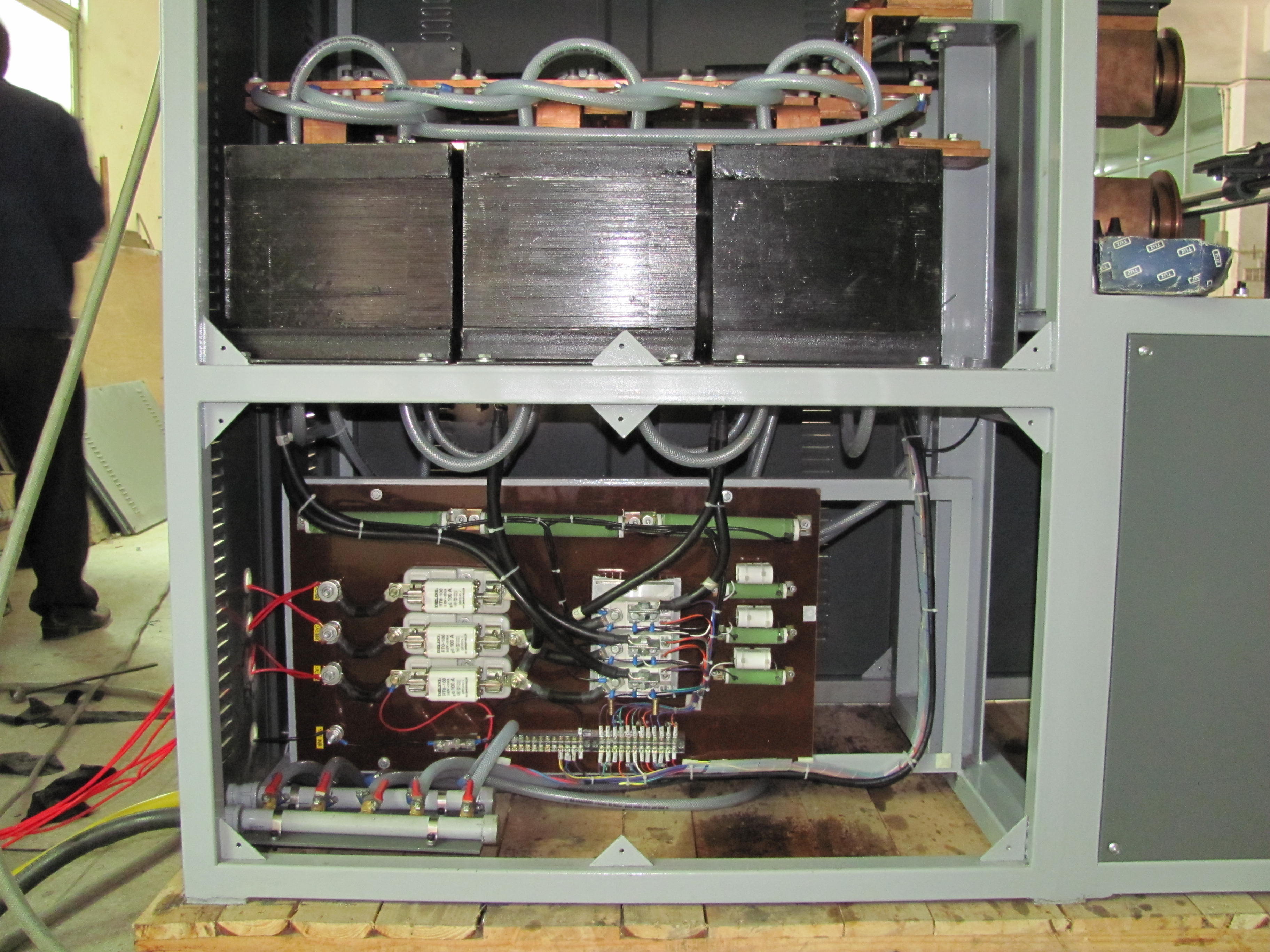

    5) Xi steel sheet with Japanese high-purity refined welding transformer.a good magnetic conductivity performance.low power consumption. strength is more stronger and stable.


    COMPETITIVE ADVANTAGE


    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
