    Hwashi Stiffener Sheet Metal Welder Spot Welding Machine Automatic Welder 2500KG

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-SMF-160K
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 20 - 30 working days after received your payment
    • Product Details
    • Company Profile

    Hwashi Stiffener Sheet Metal Welder Spot Welding Machine Automatic Welder 2500KG

    Hwashi Stiffener Sheet Metal Welder Spot Welding Machine , Automatic Welder

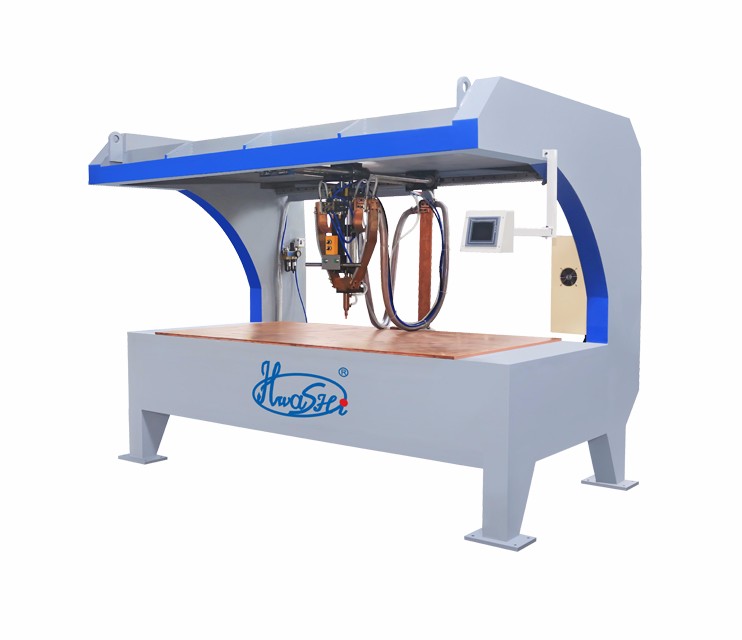

    Crank-arm mobile flat table spot welder is designed with multiple mobile arms according to the principle of mechanical arm, which can automatically or manually move in order to ensure the precise preset position of welding spot.

    AC pulse, three-phase secondary rectifying or medium frequency inverter power source are optional to be the welding power source.


    FEATURE

    1. The movement patterns of crank arm mobile flat plate spot welder can be chosen as manual or CNC automatic mobile type.

    2. The structure of manual mobile method is simple. It is convenient, flexible to move manually and the locating of welding spot is simple. Good applicability to complicated products.

    3. Automatic mobile method adopts the coding servo motor, which is equipped with precision-machined good quality of slide rail, ball screw and automatic testing system in order to complete the electrode automatic movement. Quick response, high precision of control. Automatic device adopts the X, Y axis of mobile working table, utilizing the PLC to store setting mobile program. Simple and convenient setting.

    4. Adopt direct single-point welding method. The lower electrode is designed as complete flat, which is suitable for welding of flat plate with multiple welding spots on the surface and be able to guarantee both the smoothness of surface and the consistency of welding spots.


    Intelligent welding control system

    Intelligent Touch Screen Controller Input and read
    welding parameters. The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily

    Welding platform

    Flat big copper table for welding various sheet metal door panels. If the workpiece can be placed on the table-type electrode, it can be welded without the use of auxiliary personnel. The welding gun move freely, allowing easy access to the desired welding point by one person.

    Standard Welding Electrode

    Welding can be done efficiently by changing the electrode tip according to the type and size of product. It can also weld nut, or screws, etc.

    Easy Set up and Operation.

    Comfortable working position: There is no need to hold the workpiece during welding; Pressurization is also automatic, greatly reducing the physical burden on the operator.

    Table Spot Welding Machine Advantages

    * Refined welding
    * No need for special equipment
    * Maximally easy working area access
    * Production flexibility
    * Reduced labor costs
    * Horizontal and vertical surface welding
    * Single-Arm Table Spot Welding Machine * Refined welding
    * No need for special equipment
    * Maximally easy working area access
    * Production flexibility
    * Reduced labor costs
    * Horizontal and vertical surface welding
    * Single-Arm Table Spot Welding Machine

    Specification

    S.N

    Items
    WL-SF-MF160K
    WL-SF-MF120K
    WL-SF-MF100K
    1
    Input Voltage
    380V,3-Phase
    380V,3-Phase
    380V,3-Phase
    2
    Input Power
    160KVA
    120KVA
    100KVA
    3
    Max.Welding Current
    32000A
    30000A
    28000A
    4
    Max. Electrode Force
    2.2KN
    2.2KN
    2.2KN
    5
    Welding Capacity
    3+3mm
    2+2mm
    1+1mm
    6
    Welding Schedule
    32 Kinds
    7
    Effective Size Of Welding Platform
    2200x1200mm (customized)
    8
    Max.Moving Range Of Arm
    2000mm
