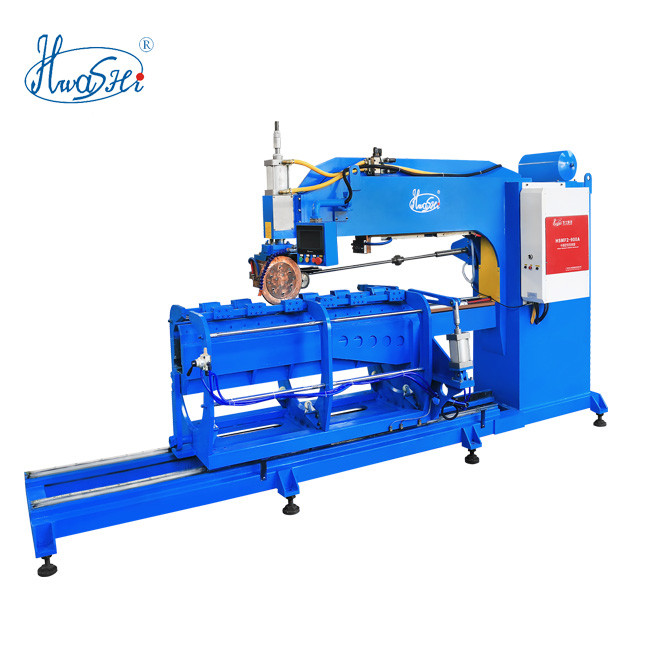

Stainless Steel 150KVA Seam Welding Machine For Oil Tank

    Buy cheap Stainless Steel 150KVA Seam Welding Machine For Oil Tank from wholesalers

    Buy cheap Stainless Steel 150KVA Seam Welding Machine For Oil Tank from wholesalers
    • Buy cheap Stainless Steel 150KVA Seam Welding Machine For Oil Tank from wholesalers
    • Buy cheap Stainless Steel 150KVA Seam Welding Machine For Oil Tank from wholesalers
    • Buy cheap Stainless Steel 150KVA Seam Welding Machine For Oil Tank from wholesalers

    Stainless Steel 150KVA Seam Welding Machine For Oil Tank

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-FS-MF-160K
    Certification : CE/CCC\ISO
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

    Stainless Steel 150KVA Seam Welding Machine For Oil Tank


    Stainless Steel 150KVA Seam Welding Machine For Oil TankStainless Steel 150KVA Seam Welding Machine For Oil Tank



    Car Alusil Oil Tank Straight Rolling Seam Welding Machine

    DESCRIPTION

    The whole production line machines are customized for oil tank. We can customzied the whole production line machines according to your detailed product and your requirement.

    Product Application

    It is widely applied to welding of sealed container of oil drum, can, heating radiator, airplane and fuel tank, rocket andmissile.

    Main Features

    1. Adopt intelligent microcomputer single piece controller which achieve pure digital setting. Online computer programming, LED digital display, stable performance, convenient modification of the program online. 2. Adopt intelligent microcomputer control welding system. When the voltage fluctuates, it will compensate the welding current automatically to ensure the stability of welding. 3. Adopt digital circuit control; select the components from famous factories in the world to ensure the equipment could operate steadily in the long run. 4. Adopt from West Germany, IXYS and IR silicon controlled from United States. High precision, long operating life, achieve high stability control of the magnitude of current. 5. The transmission tile axis adopts the latest mercury conductive technology from abroad. State-of –the-art technology with good performance in transmission and conductivity. 6. Welding roll wheel adopts the alloy copper material from Japan. High rigidity, good conductivity. 7. The transformer adopts the high pure silicon steel sheet from Japan, good performance in magnet and electricity conductivity. Low consumption of electricity. Stronger and more stable power. 8. Welding mold and the connection of the whole machine uses the mosaic connection. Easy to be assembled and disassembled.

    Technical Parameters


    Item


    Model

    Rated
    aCpacity
    Rated
    Primary
    Voltage
    Rated
    Frequency
    Maximum
    Short
    Current
    Electrode
    Stroke
    Welding
    Speed
    Electrode
    Pressure
    Motor
    Power
    Source
    Motor
    Power
    Cooling
    Water Flow
    Weight
    KVAVHzAmmM/minKNVWL/minKg
    WL-FS-50K5038050/6015000500.6-22.53-380V9030500
    WL-FS-75K7538050/6018000500.6-23.93-380V15030650
    WL-FS-100K10038050/6020000500.6-24.73-380V15030880
    WL-FS-150K15038050/6026000500.6-26.13-380V150401050
    WL-FS-200K20038050/6031000500.6-26.13-380V150401250

    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
