    CNC Automatic SS Kitchen Sink Edge Seam Welding Machine Grinding / Making / Polishing

    Ask Lasest Price
    Brand Name : Hwashi
    Price : 60000usd
    Payment Terms : L/C, T/T
    Supply Ability : 5 pc/M
    Delivery Time : 60 days
    • Product Details
    • Company Profile

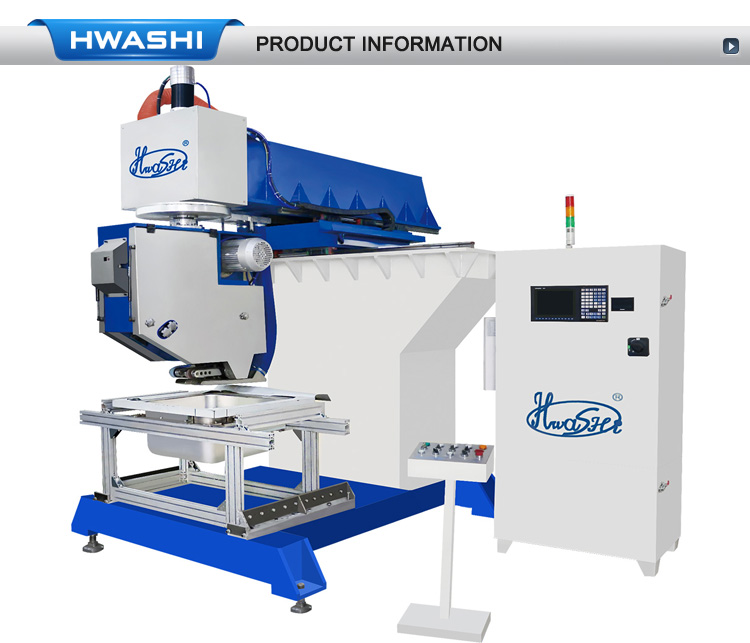

    CNC Automatic SS Kitchen Sink Edge Seam Welding Machine Grinding / Making / Polishing

    High Efficiency CNC Automatic Stainless Steel Kitchen Sink Edge Seam Welding Machine Grinding Making Polishing machineCNC Automatic SS Kitchen Sink Edge Seam Welding Machine Grinding / Making / PolishingCNC Automatic SS Kitchen Sink Edge Seam Welding Machine Grinding / Making / PolishingCNC Automatic SS Kitchen Sink Edge Seam Welding Machine Grinding / Making / Polishing


    High Efficiency CNC Automatic Stainless Steel Kitchen Sink Edge Seam Welding Machine Grinding Making Polishing machineHigh Efficiency CNC Automatic Stainless Steel Kitchen Sink Edge Seam Welding Machine Grinding Making Polishing machine

    Related Product:


    High Efficiency CNC Automatic Stainless Steel Kitchen Sink Edge Seam Welding Machine Grinding Making Polishing machine High Efficiency CNC Automatic Stainless Steel Kitchen Sink Edge Seam Welding Machine Grinding Making Polishing machine



    Detailed Description

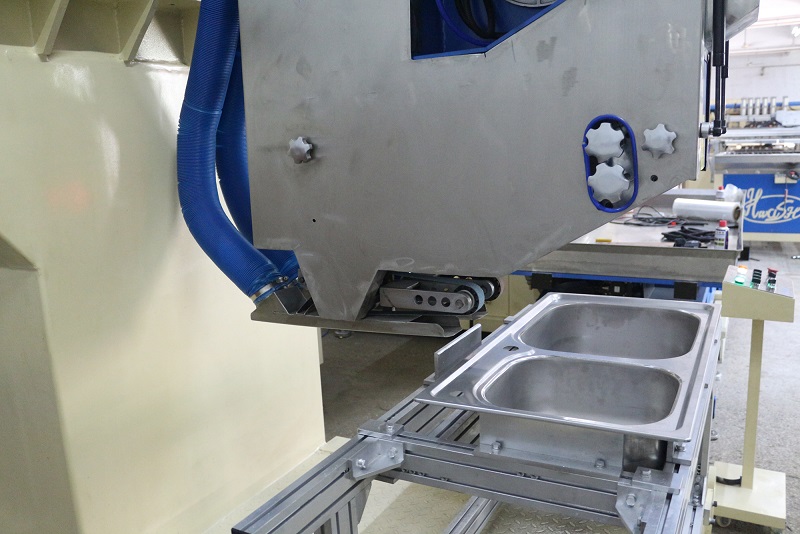

    • Utilize the principle of seam welding with circle welding wheel.
    • Memorize 16 sets of welding models(welding position and welding current of product)
    • Be located inside the designed mould and moves horizontally along the X direction and the
    • moving area should be no more than 1600mm.
    • The welding electrode will be designed to move vertically along the Y direction and the moving area should be no more than 600mm.
    • The welding electrode moves from top to bottom within 350mm along the axle Z direction and be able to conduct 360° of rotation under the control of servo motor.
    • Suitable for welding different angles of products.

    -- All the electronic components are imported from Mitsubishi or Omron of Japan

    -- High precision and long service life.

    -- Convenient usage

    -- Quick response

    -- High precision.

    -- Stable performance.

    -- Full automatic bug alarm system.

    -- Clear interface, easy operation

    -- No cold joint or loose welding

    -- Safrty in use

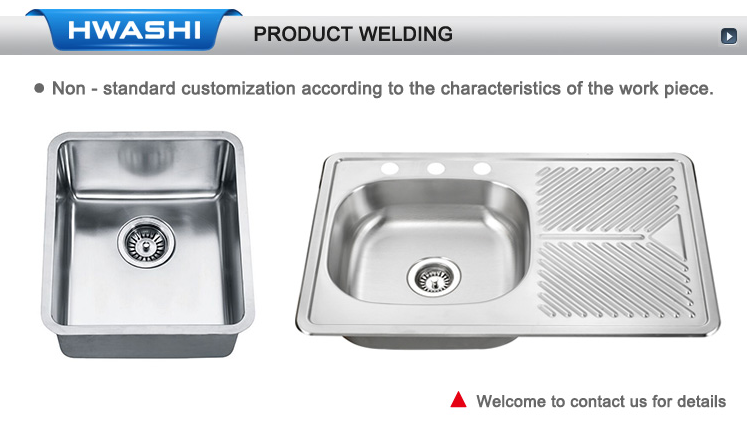

    Suitable for welding the sink within the range of 1600mmx600mm (adjustable according to your need)


    Technical Parameters


    ModelWL-AMF-160K
    Input PowerThree-phase 380 V ±10 % 50HZ
    Rated Capacity160 KVA
    Rated Duty Cycle25 %
    Max. Secondary Floating Voltage9.5 V AC
    Max. Secondary Circuit Current38000 A
    Insulation Grade of Program SegmentGrade F

    Time Adjustment Range

    of Program Segment

    0-9999 ms
    Heat Adjustment Range15 % - 99 %

    Power Grid Voltage

    Fluctuation Compensation

    When the voltage fluctuates

    between ± 10%, the secondary

    voltage dluctuates between ≤ ± 3 %

    Water Pressure0.2 MPa
    Diameter of Welding Wheel100 - 120 mm
    Width of Welding Wheel3 - 5 mm
    Speed of Welding Wheel1800 - 4000 mm/min adjustable
    Range of X-axis Moving≥1600 mm
    Range of Y-axis Moving≥1600 mm
    Range of Z-axis Moving≥350 mm
    Range of A-axis Moving360 °
    Rated Air Pressure0.8 MPa
    Air Consumption1 m3/h
    Water Temperature10-20 °C
    Cooling Water Consumption1000 L/H

    1) Silicon controlled (Nanche SCR)

    2) ABB rectifier diode


    3) Japan SIEMENS servo motor


    4) Integrated circuit (Motorola of U.S.) and PLC ( Japan SIEMENS)


    5) Japan SIEMENS intelligent touch screen control


    6) SANWO pneumatic parts from South Korea


    7) All digital control system


    8) Strictly comply with security standard of CCC and CE.

    Company Inforamtion

    We have professional production team, production line, experienced technical experts who engaged in this industry for more than 20 years.
    The main products of our company include capacitor discharge spot welder, pneumatic AC pulse spot welder, three-phase secondary rectifying spot welder, medium frequency inverter spot welder, precision micro spot welder and high degree of automatic welding machine.

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.


    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.


    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.


    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.


    5. Quick Delivery: Our company provides just-in-time delivery.


    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
