    Automatic Copper Braided Wire Welding And Cutting Machine CE / CCC / ISO HWASHI

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-TP-MF100K
    Certification : CE/CCC/ISO
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 working days after received your prepayment
    • Product Details
    • Company Profile

    Automatic Copper Braided Wire Welding And Cutting Machine CE / CCC / ISO HWASHI

    Hwashi Automatic Copper Braided Wire Welding And Cutting Machine


    DESCRIPTION

    HWASHI automatic copper braided cutting and welding machine is paten machine in our company.It equip with Hwashi second generation MF power source which is more stable and engenry than tranditional AC power,power consumpation is 1/3 of AC,and more suitable for unstable grid countries.

    This machine can Weld of braid wire of electrical parts like distribution switch, disconnector, etc. Be able to weld and cut 1 to 25 mm2 of singlet wire, double wire, and three-wire in one of annealed copper wire.

    The cutting length could be adjusted freely and the cross-section of connecting wire could be designed as different shapes like semi-circle, square, and hexagon, etc.

    DETAILED PHOTO

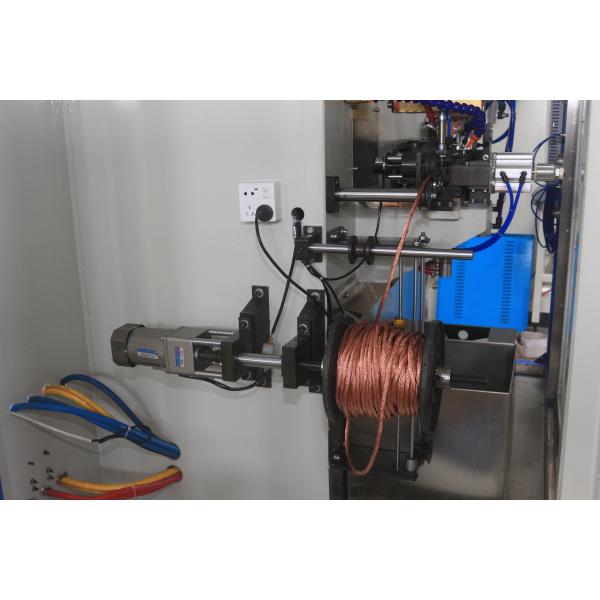

    Automatic wire roller

    coil copper wire can be put across the wire roller and it will will rotate automatic while machine is working


    Water chiller tube

    Machine is equipe with water chiller and can decrease the temperature to make the machine realize continous working.

    After finish welding and cutting,there are discharging device and can collect all finished products to the basket directly.



    Finished product with good looking and quality

    TECHNICAL PARAMETERS

    No.ItemParameters
    1Welding powerTwo-phase AC or Three-phase MF DC Power
    2Applicable Materialcopper
    3rated power50-300k
    5Duty cycle rate50%
    6Frequency1000HZ
    7Welding Thickness (MM)1-8mm
    8Welding Models101kinds
    9Output wayAC/DC
    10cutting length30-400mm
    11min forming size2*3mm
    12max forming size3*5mm
    13Lfeeder moving speed0.5m/s
