Wire Mesh Welding Machine for Automated Wire Mesh Deck Production Line

Product Description

The welding production line designed for this project is specifically intended for the rapid production of Wire pallet rack decking. It enables the fully automated production of wire mesh and stiffener. Achieving automatic wire cutting, feeding, welding, bending, rotating, edges trimming, stiffener automatic feeding, welding, and stacking of finished product. The entire line design requires only two operators, enhancing product quality and production efficiency, reducing production costs. Also it helps to addressing the issues of quality instability and low efficiency associated with manual operations. The production efficiency and automation level are significantly improved.

Working Process

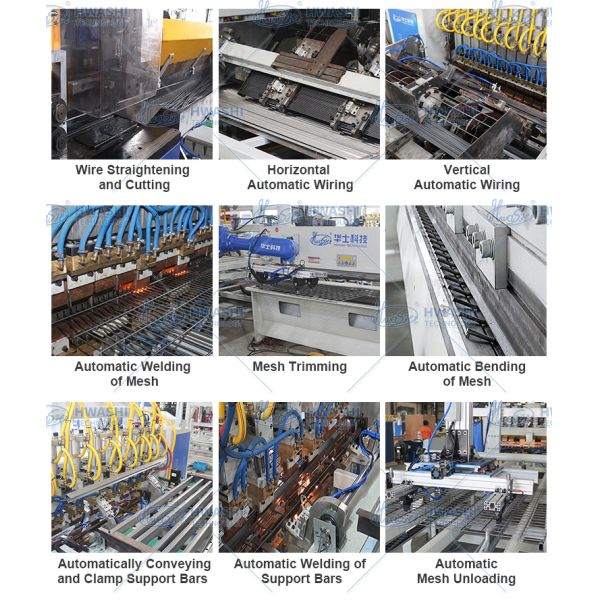

1)High speed wire straightening and cutting machine will cut the wires from the wire coil, and then load the wires to the wire supplying system for automatic wire filling of the cross wires and line wires.

2)Cross wire and line wire filling system will feed the wire to the welding position automatically.

3)The welding machine will do welding automatically.

4)After welding, the robot will pick up the mesh and load it to the wire trimming station for cutting the edges.

5)After trimming, the robot will place the wire mesh back to the conveyor line and move it to bending station.

6)The bending machine will bend one side of the mesh.

7)The rotary system will rotate the mesh, and the bending machine will bend another side of the mesh.

8)The wire mesh will move to the stiffeners (support bars) welding position

9)The mechanical arm will load the stiffeners and fix them automatically to the welding position.

10)The welding machine will do welding of the stiffeners as per drawings.

11)After welding, the unloading mechanical arm will flip and stack the finished product automatically.

Technical Data

Machine details:

High speed wirecutting machine	Automatic wire supply system
Line wire automatic filling system	Cross wire automatic filling system
Automatic wire mesh welding machine	Automatic wire mesh moving trolley
Robot and wire trimming machine	Wire mesh bending machine
Stiffener Loading system	Stiffener welding system
Automatic unloading and Stacking	Finished product

ABOUT US

Guangdong Hwashi Technology Inc. was established in 2001 whose registered capital is RMB 10.309 million.

Hwashi has two production bases in Huizhou, Guangdong Province and Gaoan, Jiangxi Province, covering

a total area of 50,000 square meters. Several branches were set up in Hong Kong, Shenzhen, Shanghai,

Wenzhou, etc. Hwashi is the leading company in welding industry in China and has been awarded the famous

brand for years. Hwashi welding machines are selling to more than 70 countries like areas in Russia, India,

Turkey, Chile, U.S. Saudi Arabia, Italy, Hungary, South Korea, Japan, etc. for providing the best welding machine

and automation solution to the top companies all over the world.

Hwashi company is a high-tech enterprise which is specialized in developing, manufacturing and selling

of standard resistance welding machine, customized automatic welding machine, and industrial robot, etc.

A professional and rich experienced technical team gathered in Hwashi. They insist in self-developing

and take the overseas advanced technology as reference and has obtained more than 70 national patents.

Except for the standard resistance welding machine, they also devote in developing all kinds of automatic

welding machine and production line. Lots of automatic welding production lines has been designed and

manufactured for famous companies in domestic and abroad successfully. Hwashi equipment has

been widely applied to manufacturing industries like cookware, automobile, motorcycle, hardware,

household appliances, low-voltage apparatus, elevator, compressor, etc. In terms of quality, Hwashi has

obtained ISO9001:2000 certificate of quality system, CCC and CE certificate. The main customers

include MIDEA Group, SUPOR Group, GREE Group, Shanghai Panasonic, DELIXI, BYD, MEYER Thailand,

BRG India, etc.

"Caring for our customers and providing earnest service" is the aim of Hwashi company. To meet what you

need is the goal Hwashi pursue. They are committed to become the top class welding solution expert in the

world and break through all kinds of welding difficulties to create real value for customers.

                                  Professional Team

Over the years, Hwashi has cultivated a large number of talented, dedicated and innovative Hwashi people.

We have a professional team of experts with rich experience in electrical engineering, mechanical design and

welding technology.

FAQ:

Q1: what is the price of your machine?
Answer: our machines are customized for your requirements. If you want to get the appropriate

price, please provide us the following information.
* The material and thickness of your product
* The minimum and maximum size of your product
* The welding position of your products
* The automation level that you want to achieve
* It would be better if you can provide us the detailed product drawings so our engineer can come out with

the suitable technical proposal and price for you.

Q2: what is the warranty period of your machine?
Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period,

there will be extra cost.

Q3: what if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged

during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he

problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.

Q4: what is the delivery time of your machine?
Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then

we can shape the machine with the seven days after receiving your payment. If you need the Customized

machine, normally it would take about 30-90 days to complete the machine.

Q5: can we send the sample to you for welding test?
Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos

after the testing. If you need, we can also send the samples back to your country so you can check

the welding quality by yourself before ordering the machine.

Q6: can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out

with the suitable technical proposal with the basic machine concept drawings to you. Be size after you

placing the order we will send you the more detailed design drawings of the machine to you for confirmation.

Only after you confirming the drawings then we will start the manufacturing process.

Q7: what’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Western Union, Alibaba trade assurance.

(we prefer you to choose the Alibaba trade assurance order. If you are not satisfied with the machine that

you order, or we delay the shipping time, then you can apply the complaint on alibaba.com. )

Q8: how can we install the machine?
Answer: for some simple machines we will provide you the english operation manual, the operation video

and also we will provide you the online guidance and training to your engineer so you can set up the

machine easily. For some complicated machines, we will send engineer to your country to help installation

and training. But there will be extra cost for Engineer, including the salary, visa cost, round-trip ticket

cost, and accommodation fee will be covered by the buyer.
